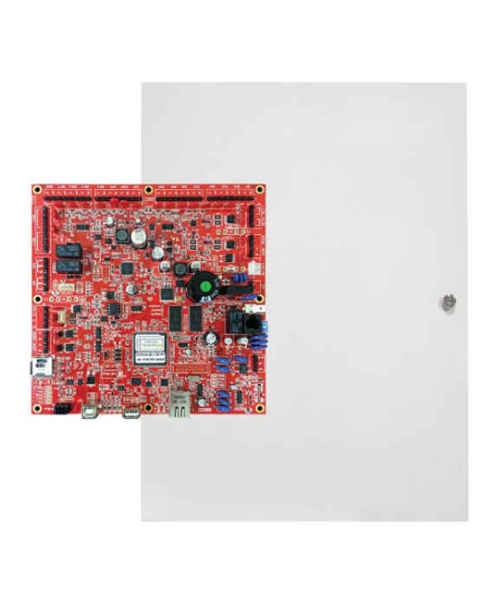

Integriti Security Controller by Inner Range, Mega Cabinet with Transformer

The Integriti Security Controller (ISC) is a state of the art IP based security system controller with powerful embedded processors and extensive on-board memory capacity.

The ISC controller runs on its own proprietary operating system delivering blistering hi-speed performance.

The modular nature of the controller and the Integriti system provides intrusion, access control and integrated solutions to suite a wide range of specifications, from small retail stores to large university campuses, hi-rise commercial buildings and entire global enterprises.

Integriti’s multi-controller architecture allows any number of ISC’s to be combined within the Integriti software package to form a globally managed small, medium or enterprise sized system, where the entire network of controllers is managed as a whole. This architecture allows for an infinite number of Readers, Doors, Areas, Zone Inputs and Outputs.

The ISC is equipped with 16 Zone Inputs, 2 Auxiliary Relay Outputs, Power Supply, IP Ethernet Port, modem and internal & external siren outputs, and can be used both stand alone or expanded further via its UniBus and RS-485 Sub-LAN ports.

The flexible, modular design of the ISC’s system parameters and Sub-Lan architecture allows a single standalone controller to be expanded to form a network of RS-485 expansion modules of up to 100,000 Users, 3,000 Zone Inputs, over 3,000 thousand Outputs, 250 Areas/Zone Partitions and over 1000 card readers and 240 Doors.

The ISC also offers a UniBus in-cabinet expansion interface where a variety of UniBus I/O and communications devices can be connected directly to the controller and housed within the same tamper protected enclosure.

This product should be installed by a certified security professional.

Features:

• IP based Multi-Controller system architecture options
• 32 bit ARM CPU
• Ultra high speed proprietry operating system
• Ethernet on-board for: Connectivity to Integriti Software, SkyTunnel® Cloud Services, Integriti Mobile Smart Phone connectivity, Automation Interface, BMS / HVAC Integration, EMS / Lift Access Control Integration
• 64 MB RAM
• 2GB Micro SD on-board
• Smart Card licensing system
• USB Master & Slave ports
• UniBus Peripheral Interface
• Remote connectivity via Web based Mobile Application
• Intelligent Power Control via Smart Fuses
• RS485 multi-drop Sub LAN (Up to 1.5 Kilometers)
• Backwardly compatible with most Concept LAN modules**
• Upgrade firmware in Controllers and new LAN modules via USB or remotely over the wire
• New easy “Plug & Play” in-cabinet UniBus for adding expansion and functionality
• Amazing, powerful Scripted Logic capability
• 16 Zone inputs on-board (expandable to 32)
• 2 Auxiliary outputs (relays – expandable to 32)
• Built in highly efficient low voltage power supply
• PSTN telephone dialler on-board
• Dedicated Port for Multipath-IP communications device
• Internal & External siren drivers on-board
• Dedicated watchdog output

** Concept Intelligent 2 and 4 Door Access Modules can be used in Integriti compatibility mode with a firmware update. Compatibility mode has limited offline functionality

Documentation:

• Datasheet
• End User brochure
• Installer brochure
