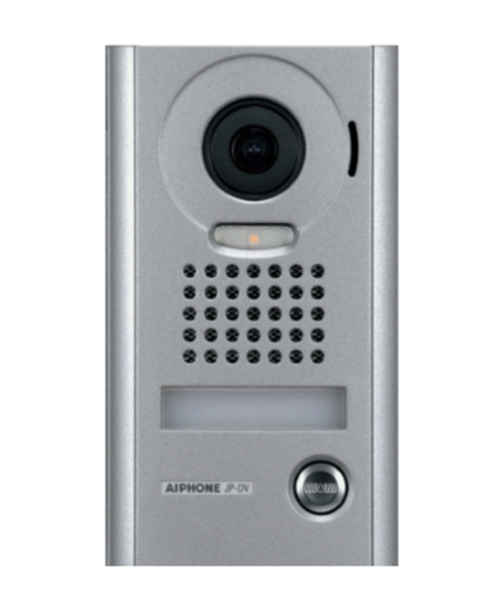

Aiphone JP-DV Video Intercom Vandal Resistant Door Station

The JP-DV is a vandal resistant, surface mount door station used with the JP hands-free, colour video entry series.

The unit mounts directly to wall surface or to a 1-gang box with MKW-P plate. The JP-DV faceplate is cast zinc, the call button is metal and the camera is protected with a clear polycarbonate lens cover. The JP-DV features a color CMOS camera, speaker and mic for communication, illuminated call directory and white illumination LED for low light conditions.

Features:

• Wide angle camera allows user to view up to 170° of the entry area
• Digital Pan, Tilt and Zoom control from Master Station
• LED illumination automatically turns on in low light conditions
• Simple 2-conductor wiring
• Mounts directly to wall or 1-gang box with MKW-P mounting plate
• Housed in aluminum diecast
• Weather resistant

This product should be installed by a certified security technician.

Specifications:

• Type of communication – Open voice hands-free auto-voice actuation
• Camera – Type: 1/4″ CMOS
• Viewing Angle: Wide (approx. 100° x 170°) with Digital Pan, Tilt, and Zoom
• Mounting – Mounts directly to wall or 1-gang box with MKW-P mounting plate
• Wire Type – 2-cond., low cap, non-shielded – use Aiphone #871802
• Wire Distance – 165′ (22AWG), 300′ (18AWG)
• Temperature Rating – 14° ~ 140°F (-10°~60°C)
• Dimensions – 6-13/16″ H x 3-7/8″ W x 1″ D

Documentation:

• Datasheet
