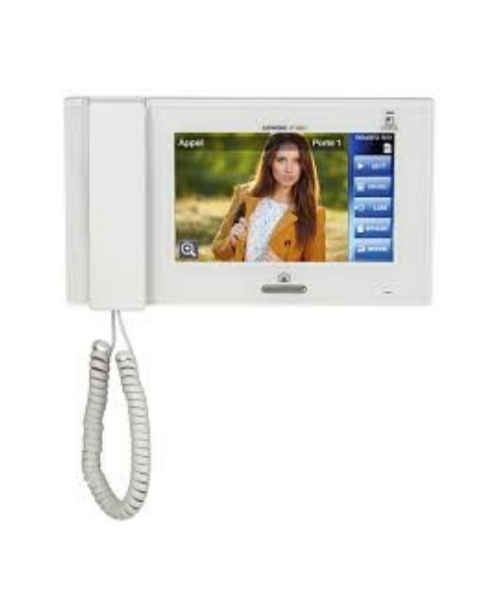

Aiphone JP-4MED Video Intercom Master Station

The JP-4MED is a video master station with a 7” color touchscreen LCD.

The JP-4MED offers handset (duplex) and hands-free (VOX) communication.

This product should be installed by a certified security technician.

This unit will support up to 4 door stations and 7 sub masters. All inside stations are equipped with a door release button for the user to allow visitor entry. The JP-4MED is also equipped with PTZ and brightness controls, giving the user control of the door station camera angle and camera lighting for better visibility. Picture memory records up to 20 calls to internal memory and 1,000 calls to a removable SD / SDHC card (not included). The JP-4MED connects to door stations using 18AWG, 2 conductor cable and connects to sub master stations using CAT-5e or CAT-6 cable.

Features:

• 7″ Touchscreen LCD
• Hands-free (VOX) or handset (duplex) communication
• Selective door release controls
• Room to room calling
• Monitor door station with the touch of a button
• Hearing aid T-Mode compatibility
• Digital pan, tilt, and zoom
• Brightness control
• Connects to JP-4MED or JP-8Z with a single Cat-5e cable
• Internal / Built-In picture memory: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting
• SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting

Documentation:

• Datasheet
