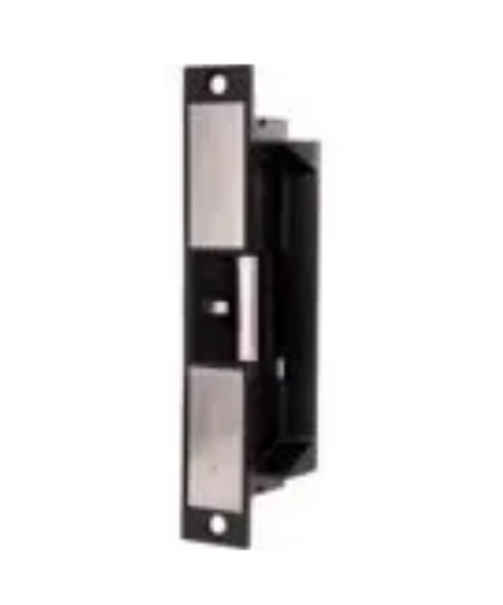

FSH FES20 Electric Strike Lock, No Monitoring

The FES20 series electric strikes are designed for use with all access control systems.

The FES20 series now come with a 10 mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15 mm lip. A 5 mm lip extension is included with the strike if needed.

Fail safe/fail secure is changeable on site.

Suitable for use on hinged doors to work with a extensive range of locks.

Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets).

Features:

• Multi voltage 12~36vdc.
• Current 12vdc @ 220mA, 24vdc @ 120mA, 36vdc @ 80mA.
• Non-monitored.
• Fire rated up to 4 hours.
• Power to lock/power to open field selectable.
• Stainless steel construction.
• Solenoid can be continuously powered.
• Optional extension lips.
• Self adhesive installation template.
• Includes tab mounting kit.
• Pre-drilled for extension lips.
• Holding strength of over 1490kg.
• FES20 is suitable for 18 mm latch with a 3 mm door gap.
