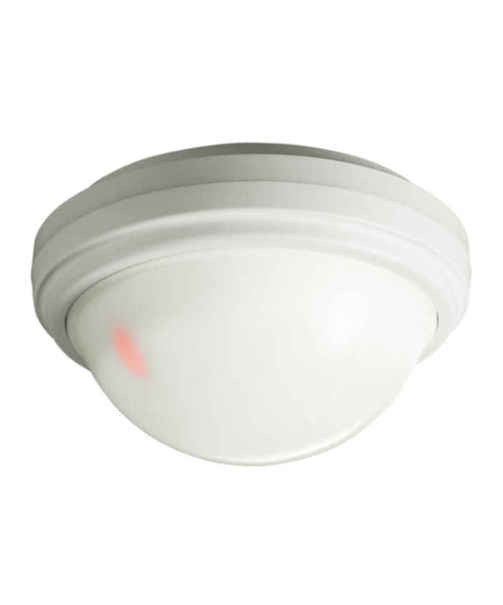

Optex OPT-SX-360Z Ceiling 360 Alarm PIR Motion Detector Sensor

The Optex OPT-SX-360Z is a ceiling-mount detector, with its unique zoom function and highly dense, triple-element detection pattern, provides unsurpassed detection performance at any ceiling height up to 5 metres.

This product should be installed by a certified security technician.

Features:

• Double conductive shielding
• Multi-focus optics
• Highly dense coverage (276 zones)
• Zoom function/ pattern adjustment
• Temperature protection
• Noise reduction circuit
• LED remote control terminal

Specifications:

• Model: SX-360Z
• PIR coverage: Φ18 m 360゜zoom
• Detection zones: 276 zones
• Sensitivity: 1.6°C at 0.6 m/sec. at 2.4 m mounting height
• Detectable speed: 0.3 to 1.8 m/sec.
• Power supply: 6 to 18 VDC
• Current consumption: 18 mA (max.)
• Alarm period: 2.0 ±0.5 sec.
• Alarm output: N.C. 28 VDC 0.2 A max.
• Tamper switch: N.C, opens when cover is removed : 30 VDC 0.1 A max.
• Pulse count: 20 ±5 sec. 1, 2 or 4
• Warm-up period: Approx. 20 sec. (LED blinks)
• LED indicator: LED blinks during warm-up period. Alarm condition
• Operating temperature: -20 to +50°C
• Environmental humidity: 95% max.
• RF interference: No Alarm 30 V/m
• Mounting height: 2.4 to 5.0 m
• Weight: 224 g
• Dimensions (H x W x D): Φ128 mm x 67 – 73 mm

Documentation:

• Product brochure
