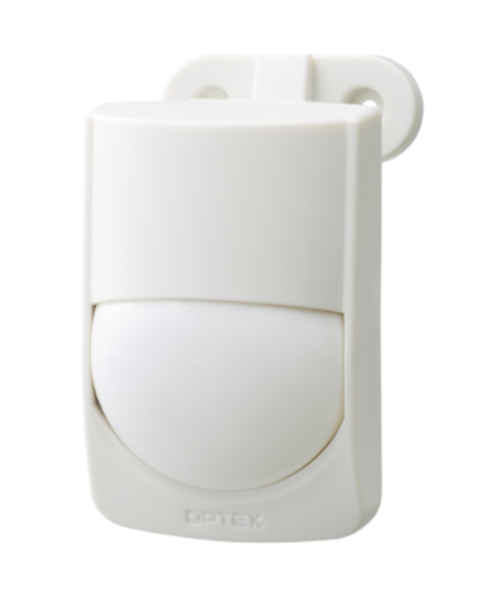

Optex OPT-RXC-ST Pet Friendly PIR Motion Sensor

The Optex OPT-RXC-ST pet friendly PIR motion detector is a high quality entry-level price motion detector for use to expand your  home alarm system.

The OPT-RXC-ST is also compatible with any alarm made by a third party manufacturer, including Tecom, Paradox, ICT, Integriti, NESS, Arrowhead or Bosch, to name a few.

Features:

• Digital Quad Zone Logic
• High density pattern
• Features a Multi Angle Bracket
• Advanced sealed optics
• Built on OPTEX’s proven RX and CX series technology, RXC-ST provides higher performance in higher temperatures, the RXC-ST features digital target recognition and is suitable for Grade 2 residential, commercial or industrial applications.
• RXC-ST has 78 dense zones to cover the whole coverage. At any spot within the coverage more than 4 (quad ) zones are utilized to verify if it should generate alarm or not. The CORE Platform enabled the QUAD ZONE LOGIC to evolve to the next step. Providing digital quantification of infrared energy, RX-CORE’S enhanced accuracy in both human detection and pet immunity.
• Digital Quad Zone Logic: Improved accuracy and increased zone capacity makes possible QUAD zone recognition. This central feature of our new range of sensors offers key benefits over conventional detection.
• Advanced Temperature Compensation Logic: Automatically increases the detector’s sensitivity under high temperature conditions, especially where the background temperature ranges from 35-37°C(63 – 67°F), close to that of the human body.

This product should be installed by a certified security technician.

Specifications:

• Detection Method: Passive Infrared (PIR)
• Coverage: 12m x 12m, 85º wide
• Detection Zones: 85 zones
• Mounting Height: 1.5 to 2.4m
• LED Indicator: Switchable On/Off
• Alarm Period: Approximately 2.5 sec
• Alarm Output: NC, 24V DC, 0.2A max
• Tamper Switch: NC, Open when cover is removed
• Sensitivity Range: Switchable LOW/MID/HI
• Warmup Period: Approximately 30 sec
• Power Input: 9.5 to 16V DC
• Current Draw: 8mA (normal), 11mA (max), at 12V DC
• Dimensions: 93.4mm x 61.4mm x 46.0mm (HxWxD)
• Weight: Approximately 70g (with bracket 90g)
• Operating Temperature: -20ºC to +50ºC
• Environment Humidity: 95% max
• RF Interference: No alarm 10V/m

Documentation:

• Datasheet
• Manual
