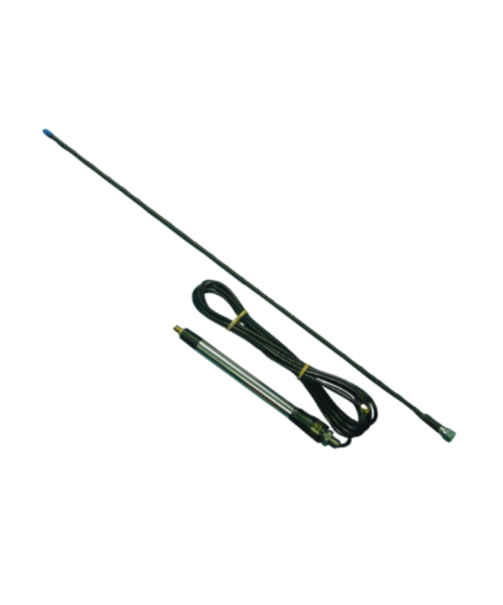

Elsema ANT433M 433Mhz Antenna, 94cm Long
$339.00
Est. Delivery 4-14 days.
$10 shipping nationwide. 7 day right of return.
94cm long antenna, 433 MHZ, with SMA connector.
The term ground independent relates to its ability to be completely independent of the need for negative grounding (Earth). This feature allows the antenna to work efficiently in a wide variety of applications.
Its low VSWR and high gain makes this antenna suitable for applications that require extended range.
Specifications:
- Order Code (Model): ANT433M
- Frequency: 428 to 437MHz
- Tuned Bandwidth: 9MHz
- Gain: 6.0 dBi
- VSWR ( Return Loss): < 1.5 : 1 over 15KHz
- Impedance: 50 Ohms
- Maximum Power: 50 Watts
- Radiated Pattern: Low Angle Omni Directional
- Construction: Stainless Steel
- Length: 94cm
- Weight: 420 grams
- Coaxial: Length 3.6 metres, standard
- Termination: SMA, Standard
Documentation:
| Weight | 1.1 kg |
|---|
