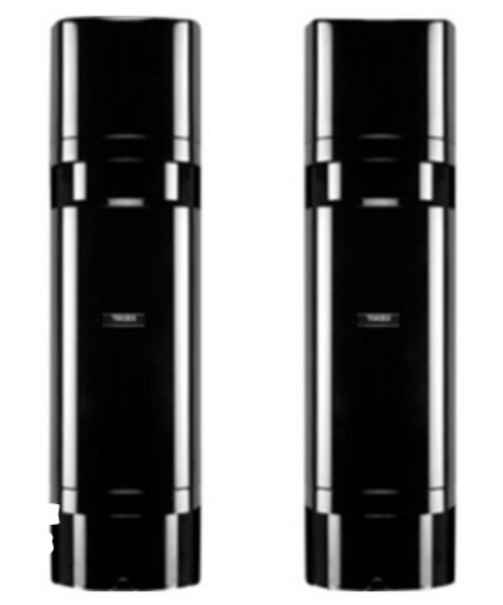

TAKEX PB-100ST Beam Advanced Twin 100m

Synchronised twin beams for high reliability in perimeter intrusion detection.

The PB-100ST takes TAKEX Twin beam technology and increases the pitch between upper and lower beams for greater stability in open-field environments.

• Synchronised Twin Beams for high reliability.
• Double Modulated beam for unsurpassed immunity to direct and reflected sunlight, vehicle headlights and other light sources.
• Built-in view finder and monitor jack output for easy beam alignment.
• 180 degree rotating optics for increased installation flexibility.
• Automatic Gain Control circuit.

This product should be installed by a certified security technician.

Specifications:

• Product type: Photoelectric Beam Sensor
• Detection system: Simultaneous breaking of 2 beams
• Infrared beam: LED pulsed beam, Double modulation
• Protection distance: Outdoor 100m (330ft) or less. Indoor 200m (660ft) or less. Max. beam range Outdoor 1000m (3300ft) or less. Indoor 1000m (3300ft) or less
• Response time: 50msec. to 700msec. (Variable at pot)
• Supply voltage: 10V to 30VDC (Non-polarity)
• Current consumption: 80mA or less
• Alarm output: Dry contact relay output form C
• Contact action: Interruption time + delay time
• Contact capacity: 30V AC/DC, 0.5A or less
• Tamper output: Dry contact relay N/C
• Action: Activated when cover is detached
• Contact capacity: 30V AC/DC, 0.5A or less
• Alarm LED: Red LED (Receiver). ON: when an alarm is initiated.
• Attenuation LED Red LED (Receiver). ON : when beam is attenuated.
• Functions: Monitor jack output, AGC circuit, Frost proof cover
• Ambient temperature range: -25°C to +60°C (-13°F to +140°F)
• Mounting positions: Indoor / Outdoor
• Wiring Terminals
• Weight Transmitter: 1200g (42oz)
• Receiver: 1200g (42oz)
• Appearance: PC resin (wine red)
