Platinum Tools 10G Termination Kit

The Platinum Tools 10G Termination Kit is the right solution for terminating larger cables like Cat6E, Cat6A, Cat7.

It’s also suitable for working with over-sized Cat5e/6 industrial Ethernet cables for data, audio and video applications.

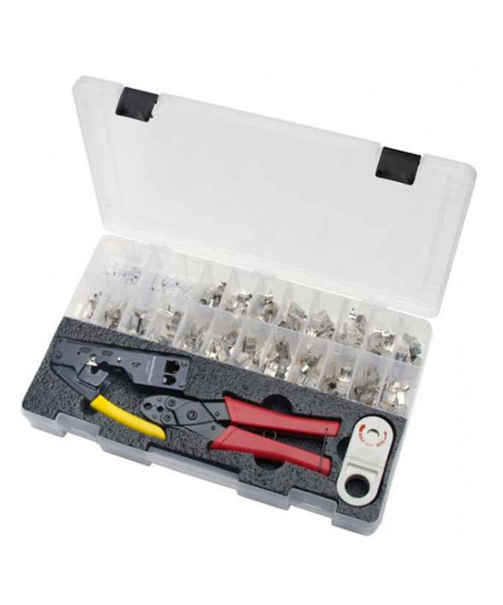

The 10G Termination Kit includes:

• Tele-Titan crimp tool for Cat6A plugs
• 100 x Cat6A plugs
• Cyclops2 cable jacket stripper
• CT-360 external ground crimp tool.

Tele-TitanXg® Cat6A/10Gig Crimp Tool:

• Specifically made for terminating, P/N 106190 Cat6A/10Gig connectors
• Straight action vertical crimp force
• Minimal hand force for a perfect crimp

RJ45 Cat6A/10Gig Shielded Connectors (100 pieces):

• Max cable OD: 8.5mm/0.335
• Max conductor OD: 1.35mm/0.053
• UL and RoHS compliant

Cyclops®2 Cable Jacket Stripper:

• Self-adjusts to automatically score PVC, Plenum and others without damaging braids, foil or conductors
• Ready-to-use out of the kit without having to make adjustments
• Works with shielded/unshielded twisted pair single & multi-core and fibre optic cables
• Accepts cable ODs 0.10″ to 0.43″ (2.5mm – 11mm)

CT-360 External Ground Crimp Tool:

• 360° crimp on the external ground tab of shielded RJ45 connectors
• Perform concentric termination with full control to prevent over or under crimping – Dual cavity covers wide range of cable ODs ranging from 0.245″ to 0.335″ (6.2mm – 8.5mm)
• Spring-loaded, non-ratcheted design
• All steel frame, rust-resistant black oxide finish, moulded plastic handles

Documentation:

• Product brochure
