Dahua 44702 CCTV Kit 3 6MP Eyeball Cameras and 1TB Smartbox NVR

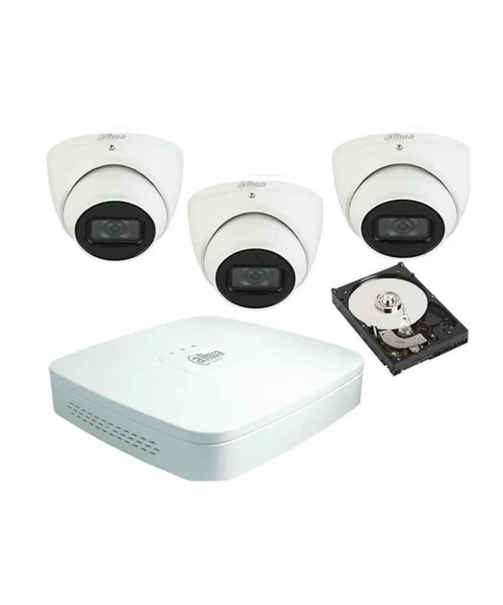

The Dahua 44702 CCTV camera kit comes with 3 eyeball format CCTV cameras and a network video recorder (NVR) with a 1TB storage hard disk.

The disk needs to be installed into the NVR.

The cameras are from Dahua’s WizSense 3 Series. They have an AI chip and deep learning algorithms. It classifies humans vs vehicles with high accuracy through Smart Motion Detection Plus (SMD Plus). This enables reliable rules to be triggered by defined targets, resulting in far fewer false positives.

This kit is ideal for residential and small office/commerical installations.

Kit contents:

• 1 x NVR4104-P-4KS2/L PRO, network video recorder
• 1 x 1Tb HDD storage – requires installation into the NVR
• 3 x IPC-HDW3641EMP-S-0280B-AUS-S2 eyeball format CCTV cameras

Features:

• Resolution: 1/2.7″ 6MP – STARLIGHT Technology
• Lens / FOV: 2.8mm Lens. 99° (H). 72° (V)
• Video Format: H.265+ and H.264 variants
• Min Illumination: 0.005 Lux/ F1.60, 0Lux IR on
• Max IR Distance: Up to 50m, 2 IR LEDs
• Day/ Night, WDR: More than 50dB, 3D DNR. 120dB in BLC Mode
• IVS Features: Tripwire, Intrusion (Classification of Humans & Vehicles)
• Audio: Built in Mic – G.711a/ G.711Mu/ AAC/ G.726 compression
• Interoperability: ONVIF: Profiles S,G, T. CGI, Milestone, Genetec.
• Storage: Micro SD Card compatible – up to 256GB. See 46039
• Power: 12VDC & PoE. 6.7W (12VDC), PoE Max <7.5W IR on
• Ingress Rating: IP67. Metal casing
• Recommendation: Hi-res camera ideal for wide scenes such as car park overviews.

NVR Features:

• IP Video Inputs – 4 onboard PoE Ports
• PoE Output – Max 25.5W for single port. 50W total budget
• Max Input / Record – 80Mbps
• Max Decoding – 2ch@ 4K, 8ch@ 1080P max
• Video Compression – H.265+ / H.264+
• Display Outputs – 1x HDMI, 1x VGA output. Simultaneous video output
• Audio – Two way Talk, 1 channel Input, 1 channel output
• Storage – 1x Drive bay. Max 6Tb (not included)
• Ethernet Port – 1. Independent 100Mbps port
• IVS Support I – Tripwire, intrusion, Object abandoned / missing
• IVS Support II – People counting, Heat map
• Key Features – 4K resolution support. ANR feature when cameras have edge storage
• APP Support – iPhone, iPad, Android. X-DMSS from phone App store.
• Dimensions – 204.6mm x 204.6mm x 45.6mm

Accessories (not included):

• Indoor Back Box: PFA139 436744
• IP66 Slim Back Box: PFA130-E 43672
• IP66 Thick Back Box: PFA121 43671
• Wall Bracket: PFB204W 436692
• Pole Mount: PFA152-E 436703 and PFB204W 436692

This product should be installed by a certified security technician.
