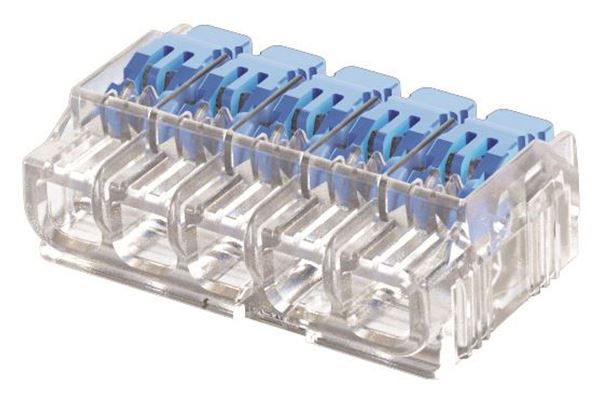

IDEAL INDUSTRIES 32A 5 Port Wire Connector Gen II Lever, Jar of 30

Take on complex wiring tasks with confidence using IDEAL INDUSTRIES Gen II 5-Port Lever Wire Connectors.

Designed for versatility and performance, these connectors handle solid, stranded, and flexible wires ranging from 0.2 mm² to 4.0 mm² (solid/stranded) and 0.14 mm² to 4.0 mm² (flexible), all with a robust 32A current rating.

The intuitive lever design allows for fast, tool-free installation of up to five wires of mixed types and sizes—ideal for junction boxes, lighting circuits, and more. A smart alternative to traditional terminal strips, these connectors help electricians save time, reduce effort, and ensure consistent, secure terminations on every job.

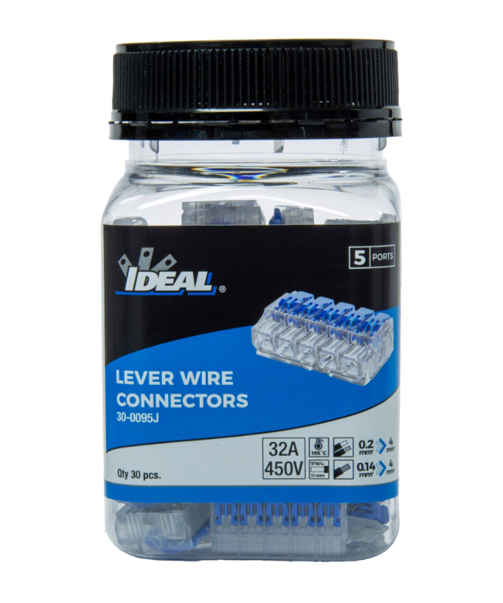

Packed in a convenient 30-piece jar, these 5-port connectors are a dependable solution for high-capacity wiring needs in residential, commercial, or industrial settings.

Details:

• For use in all applications up to 32A including lighting, access control, radial and final ring circuits
• Releasable connector – for solid, stranded and flexible wires
• Innovative levers – opens in the opposite direction of insertion points
• Compact design – suits tight spaces
• Easy to use – no need to lift the levers when using on solid wire
• Continuity check port – for testing
• Clear shell – allows for verification of connection

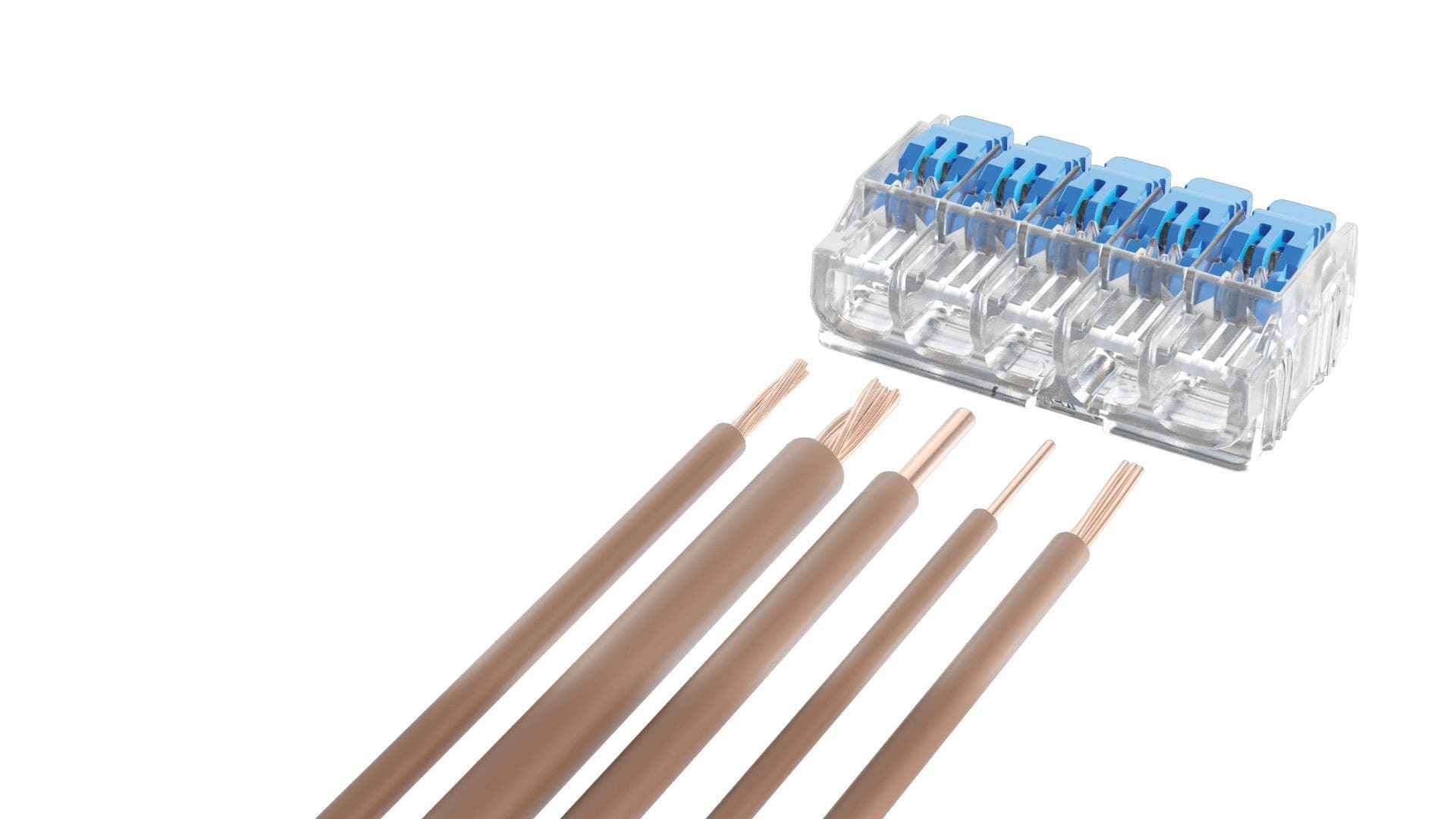

• Secure your cables in seconds – no screwdriver, no crimping, just strip, push, connect

Documentation:

• Datasheet

Specifications:

• Wire clamping range: 0.2 mm2 to 4.0 mm2 (24 – 12 AWG for solid and rigid stranded wires (7 strands), 0.14 mm2 to 4.0 mm2 (24 – 12 AWG) for flexible wires
• Ratings: IEC 60998: 32A | 450V | 85° C (ambient), UL 486C: 20A | 600V | 105° C (working)
• Strip Length: 11-12mm | 0.45″
• Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
• CE, UKCA, UL and ENEC approved
