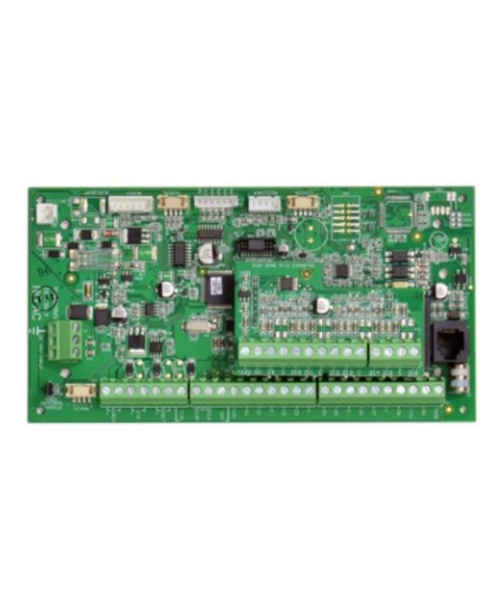

NESS D16X Deluxe PCB Alarm Panel with Kitbag and Manuals

Specifications

• Box Dimensions: (W – H – D) 235 x 300 x 90 mm
• Power Supply: 17VAC 1.4 Amp Plug Pack (supplied)
• Power Supply: 13.8v DC @ 800mA
• Quiescent Current Draw: 80mA with 1 keypad
• Operating Voltage: 17VAC / 15V DC
• Rechargeable Battery: 12 volt 7.0 Amp/hour Sealed lead Acid
• Battery Charging Current: 350mA maximum, current limited
• Dynamic Battery Test: Backup battery is tested under load, hourly and on arming
• Fuses: 2 Amp auto resetting / Siren output & Reset output. 500mA auto resetting / 12 volt auxiliary outputs. 200 mA auto resetting / Strobe output
• Zone Outputs: 16 zone inputs. 2 x 24hr tamper inputs
• End of Line Resistor: Choice of 12 programmable values including N/C. Default 2200 Ohms (2.2k)
• Maximum Keypads: 3 x Navigator Touch Keypads max.
• Integrated Radio Options: Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 8 radio zones
• Serial Header: Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data
• Integrated Access Control: Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers
• Siren Output: On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers
• Strobe Output: 12v DC timed output. Maximum 2 x 1 Watt strobe lights
• Reset Output: 12v DC timed output. Max. 3 x 12v piezo screamers
• Equipment Power Output: 13.8v DC output for powering detectors and other equipment. Maximum 500mA
• Aux Reader: Multi-pin connector provides outputs Aux1, Aux2, Aux3, Aux4, 12v DC.
