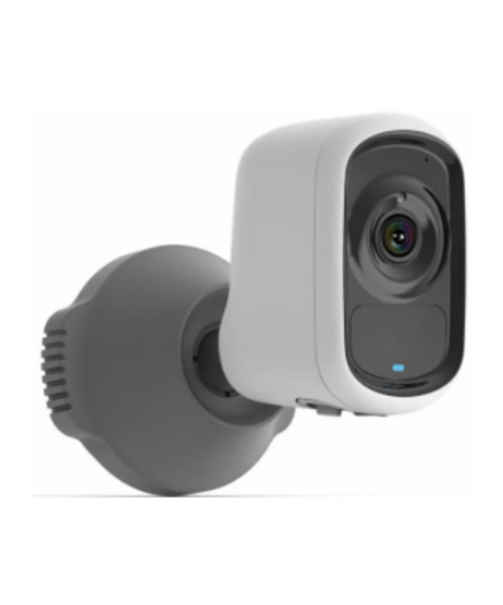

JZYZ JZ-C02 Wireless AI 2MP Smart Battery CCTV Security Camera

The JZYZ JZ-C02 Wireless AI Smart Battery security camera provides battery powered video surveillance security, 2-way audio, PIR motion detection suitable for home and small business electronic surveillance applications.

Note: For AI function, smart notifications, and Activity Zone functions, the separate Cloud Service subscription in the App must be purchased.

Features:

• Easy to install and use
• Clear and smooth video browsing with intelligent transmission giving full play to capabilities of the network
• Online firmware upgrade, and synchronous updating of the functions and experience
• Standard H.265 video compression algorithm enabling the transmission of high-definition videos in networks with narrow bandwidth. Local high-definition videos with high image quality and low stream supporting smoother presentation without ghosting
• Two-way voice intercom supported with echo elimination and background noise suppression
• Compatible with Android and iOS. Remote real-time monitoring supported with the iOS intelligent terminal
• 2-megapixel high resolution (1920 X 1080 pixels) for clear picture quality
• Dual-source lighting for night vision (night vision distance = 7 m) comprising infrared lamp / white-light source. Colour images available for night vision
• The built-in rechargeable lithium battery with long battery life functions for up to 6 months under normal circumstances and can stand by for 12 months
• 2.4G Wi-Fi supported (IEEE802.11b/g/n)
• The image automatically flips with the installation direction of the device (G-SENSOR)
• Cloud storage, micro SD card (up to 128GB – not supplied) and mobile phone video recording supported
• QR code intelligent connection and network allocation supported
• Supports human contour detection, activity zone, intelligent push and pet snapshot
• IP65 dustproof and waterproof design for convenient installation

Specifications:

• Master Processor: SOC HI3518E V300: A dominant frequency of 900 MHz
• DDR: 512M
• Image Sensor Sensor: 1/3″ color CMOS Sensor
• Lens: M12, f: 2.8mm, F2.0, 2-megapixel
• Visual Angle: H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 110 degrees
• Minimum Illumination: 0.01 Lux
• Audio Input/Output: Two-way voice intercom available (built-in microphone and speaker)
• Audio Compressing Method: AAC
• Video Video Compressing Method: H.265
• Lighting Frequency: 50Hz, 60Hz
• Image Frame: Rate 15 fps
• Maximum Image Resolution: 1920 x 1080P
• Light Source for Night Vision: Mid-power infrared lamp (850nM in wavelength) / dual-source white-light source with an irradiation distance of 7m
• Network Wireless Network: 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
• Protocols Supported: TCP/IP, UDP/IP, DHCP, RTMP, MUTP
• IP Address Supported: Dynamic IP address supported
• AI Intelligent Features: Human contour detection, activity zone,intelligent push, pet snapshot
• Alarm Methods Alarm Notification: Alarm push by mobile APP，white light flashing and alarm sound
• Wake-up: Wake-up Method PIR body induction wake-up, and remote positive wake-up
• Video Recording: Recording Method Alarm triggered recording, and manual recording
• Video Storage: Cloud storage, local MICRO SD card (not supplied), and mobile phone memory
• Indicator Lamps: LED Indicator RGB tri-color lamp indicating the status of power/network signal/functionality
• Battery Capacity: 5200mAh(default )/6700mAh(need add 2USD)
• Removability: Unremovable
• Battery Life: 6 months (provided that 20 10s videos are recorded per day)
• Standby Time: 1 year
• Charging Voltage: DV 5V+-5%/1.5A
• Charge Time: Within 8 hours
• Protection Method: IP65 resistance to dust and water; over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures
• Power Consumption: Standby Power Consumption 2.4mW (3.8V 0.63mA)
• Power Consumption (Daytime Operation): 1W (3.8V 264mA)
• Power Consumption: (Nightime Operation): 2.23W (3.8V 588mA)
• Interfaces: Power Supply and 1 MICRO USB interface
• SD Card: 1 MICRO SD card (up to 128GB supported). SD Card not supplied
• Keys: 1 reset key and 1 on/off key
• Installation Method: Installation Method Magnet and 1/4 universal screw holes
• Environment: Dustproof and Waterproof IP65
• Operating Environment: -10°~45°C / 0%~80% (no condensation)
• Storage Environment: -20°C~60° / 0%~90% (no condensation)
• Specifications: Size (LxWxH) 84mm*62mm*92.5mm (with bracket excluded)
• Net Weight of Bare Machine: Approx. 338g
• Finished Weight: Approx. 570g
• Material + Process: ABS + PC
• Colour: White with high gloss
• Certifications: Certificate RoHS，CE，FCC，WEEE，MSDS，UN38.3
