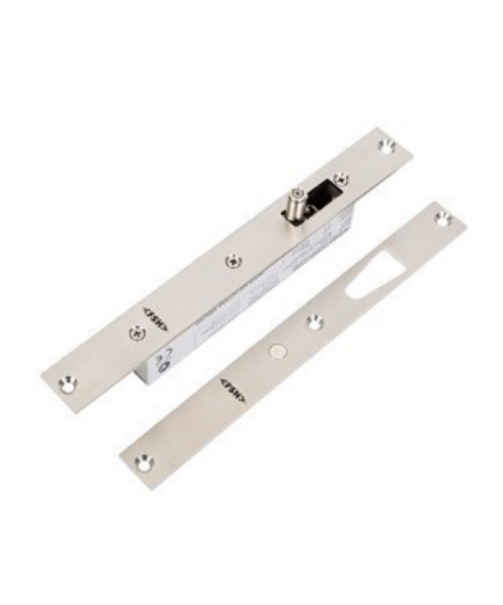

FSH VE1260S ECOLOCK Pre-Load Bolt Lock

The patented EcoLock™ VE1260 range is a high torque motor driven drop bolt with up to 35kg pre-load/side load tolerance.

It can be installed vertically or horizontally and can be used on 180° swing through opening doors.

Fire rated to 4 hours.

Features:

• Releases with up to 35kg of pre-load/side load.
• Motorised locking device.
• Simple PTO/PTL locking mode changeover.
• Square end face plate for retro fitting to existing installations.
• Tested to 400,000 cycles.
• Multi voltage from 12Vdc to 30Vdc.
• 12Vdc initial current draw 1Amp standby/sleep mode less than 15mA @ 12Vdc.
• Fully monitored including door position reed.
• 1000Kg holding force.
• Face plate dimensions 256 (L) x 30 (W) x 3 mm (T).
• Body dimensions 163 (L) x 22.5 (W) x 41.5 mm (D).
• Strike dimensions 256 (L) x 27 (W) x 3 mm (T).
• Fire rated up to 4 hours.
• 5 year warranty.
