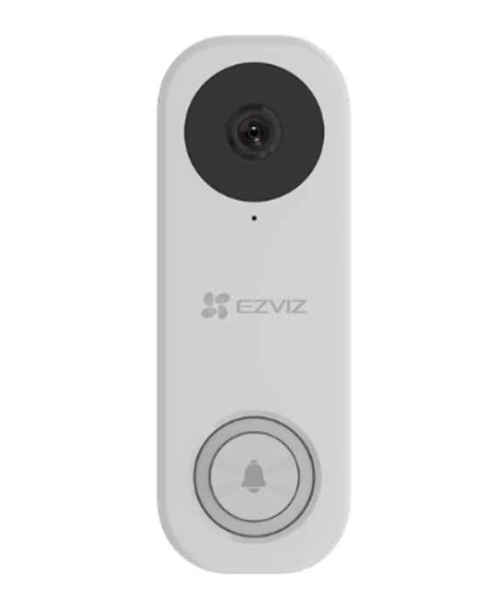

EZVIZ DB1PRO-5MP WiFi Wired Video Doorbell

Essential security with upgraded performance. Choose the all-new DB1 Pro to enjoy next-level protection and convenience at your front door.

See your visitors from head to toe in an ultra-clear 2K+ video. Greet them from wherever you are, and get real-time alerts on events that you care about. Slim and weatherproof, the doorbell will perfectly match the style of an apartment, condo or villa.

See ultra-clear and ultra-wide, day or night.

The DB1 Pro features impressive 2K+ video quality and an ultra-wide field of view, so you can see your visitors from head to toe in vivid detail. Even in the dark, you will see clearly with the extended 5m infrared night vision.

Built-in AI for smarter alerts.

Know who’s there even before it rings. With its built-in AI chip, you can set the DB1 Pro to alert you only when people or vehicles appear in your pre-set detection area.

Dual-band Wi-Fi connection boost.

No more struggles to get your doorbell stably connected. You can switch between 2.4GHz and 5GHz frequency bands to ensure that the DB1 Pro runs with a stronger wireless signal and delivers faster alerts.

Built for any weather.

It’s a doorbell that you can set and forget. Rainy, snowy or stormy, the DB1 Pro is here to deliver steady performance.

Answer your door, at home or away.

Whenever a visitor presses your doorbell, you will receive a video call on your phone. See, hear and talk clearly, so the person knows if it’s a good time to visit.

Save on storage space and ease network loads.

Whenever a visitor presses your doorbell, you will receive a video call on your phone. See, hear and talk clearly, so the person knows if it’s a good time to visit.

Flexible storage you can trust.

You’ll never miss a moment with the DB1 Pro. Save all event-triggered videos locally on a microSD card up to 256GB, or subscribe to EZVIZ CloudPlay for fully encrypted cloud storage.

Your data and privacy is protected.

Your data security and privacy are the cornerstones of every product we design. Data activities between the device and the EZVIZ Cloud are encrypted from end to end. Only you have the keys to decrypt your data.

Note:

• The local storage card needs to be purchased separately.
• When the 24/7 recording mode is applied, the H.265 technology can reduce the video storage space and bandwidth by 50% as compared to H.264.
• The cloud storage service is only available in certain markets. Please verify availability before making a purchase.

Features:

• 2K+ Resolution
• 176° Ultra-Wide Field of View
• IR Night Vision (Up to 5m)
• Supports 2.4/5GHz Dual-Band Wi-Fi
• AI-Powered Human / Vehicle Shape Detection
• Weatherproof Design
• Two-Way Talk
• H.265 Video Technology
• Supports MicroSD Card¹ (Up to 256GB)

Specifications:

• Model CS-DB1-B0-1J5W2FR

Camera Parameters

• Image Sensor 1/2.7″ Progressive Scan CMOS (Supports low light sensitivity)
• Lens 2.0 mm @ F2.0,view angle: 176° (Diagonal)
• Day & Night IR-cut filter with auto-switching

Video Parameters

• Max. Resolution 2544 × 1888
• DNR 2D/3D DNR
• WDR DWDR
• Video Compression H.265 / H.264
• Frame Rate Max: 15fps; Self-Adaptive during network transmission

Interface

• Audio Input Built-in high-sensitivity microphone
• Audio Output Built-in high-power speaker
• Reset button Yes

Network Parameters

• Protocol EZVIZ cloud proprietary protocol
• Interface Protocol EZVIZ cloud proprietary protocol

Functions

• Intelligent Alarm AI-powered human / vehicle shape detection
• Tamper Alarm Sound and light anti-dismantling alarm (supports sending alerts to the smartphone)
• Video Intercom Long-distance two-way talk
• Wi-Fi Parameters
• Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
• Frequency Range 2.4 GHz & 5 GHz
• Channel Bandwidth Supports 20MHz, 40MHz
• Data Security 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK
• Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

General

• Operation Conditions -30°C to 60°C (-4°F to 122°F), Humidity 95% or less (non-condensing)
• Ingress Protection Grade IP 65
• Weight Doorbell: 105 g (3.7 oz), With Package: 440 g (15.52 oz)
• Size 128.3 × 46.3 × 19.3 mm (5.1 × 1.8 × 0.8 inch)
• Power Supply AC 16V~24V
• Power Consumption Max. 2W

In The Box

• EZVIZ DB1 Pro Doorbell
• Mounting Plates (2)
• Mounting Screws (3)
• Plate Foam
• Power Kit
• Drill Bit
• Screwdriver
• Anchors (3)
• Wire connecters (4)
• Security Screw
• Fixing Screws (2)
• Wire Harness
• Fuse Wire
• U-shaped Wires (2)
• Regulatory Information (2)
• Quick Start Guide

Certifications

• Certifications UL / CE / FCC / REACH / WEEE / RoHS / UKCA

Documentation:

• Datasheet
